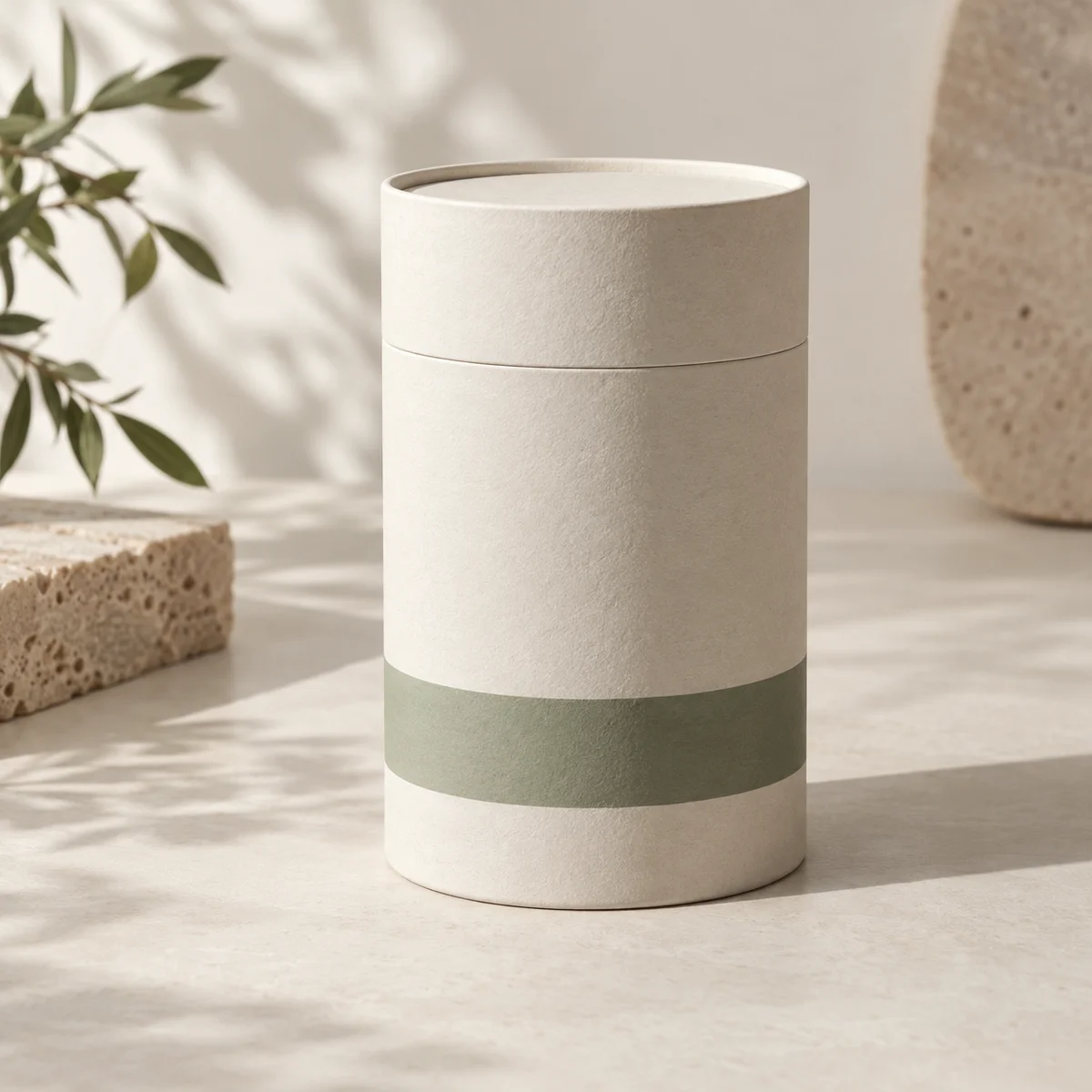

Concept A: closed ivory paperboard tube with sage band and separate lift-off lid — Original MUGE PACKAGING concept illustrations. Each image shows a different concept option; lid depth, proportions and decoration differ. These are not consecutive views of one physical sample, customer work, factory photographs or tested fit. Final dimensions, construction and performance require project review and sampling.

Paperboard outer-pack concept

Custom Supplement Paper Tube Secondary Packaging

Review a paperboard outer tube for separately sealed supplement bottles: diameter, capped height, label zone, lid, liner, print and sampling inputs.

This is a concept, not a customer project; final dimensions and fit require sampling. This cylindrical lift-off-lid direction is for a bottle that already has its own primary container and seal. Review it for a retail or gift presentation brief when the bottle envelope and required outer-label layout are available. It is not a loose-powder container or an approved food-contact specification.

Request a supplement tube project review

Three separate presentation concepts

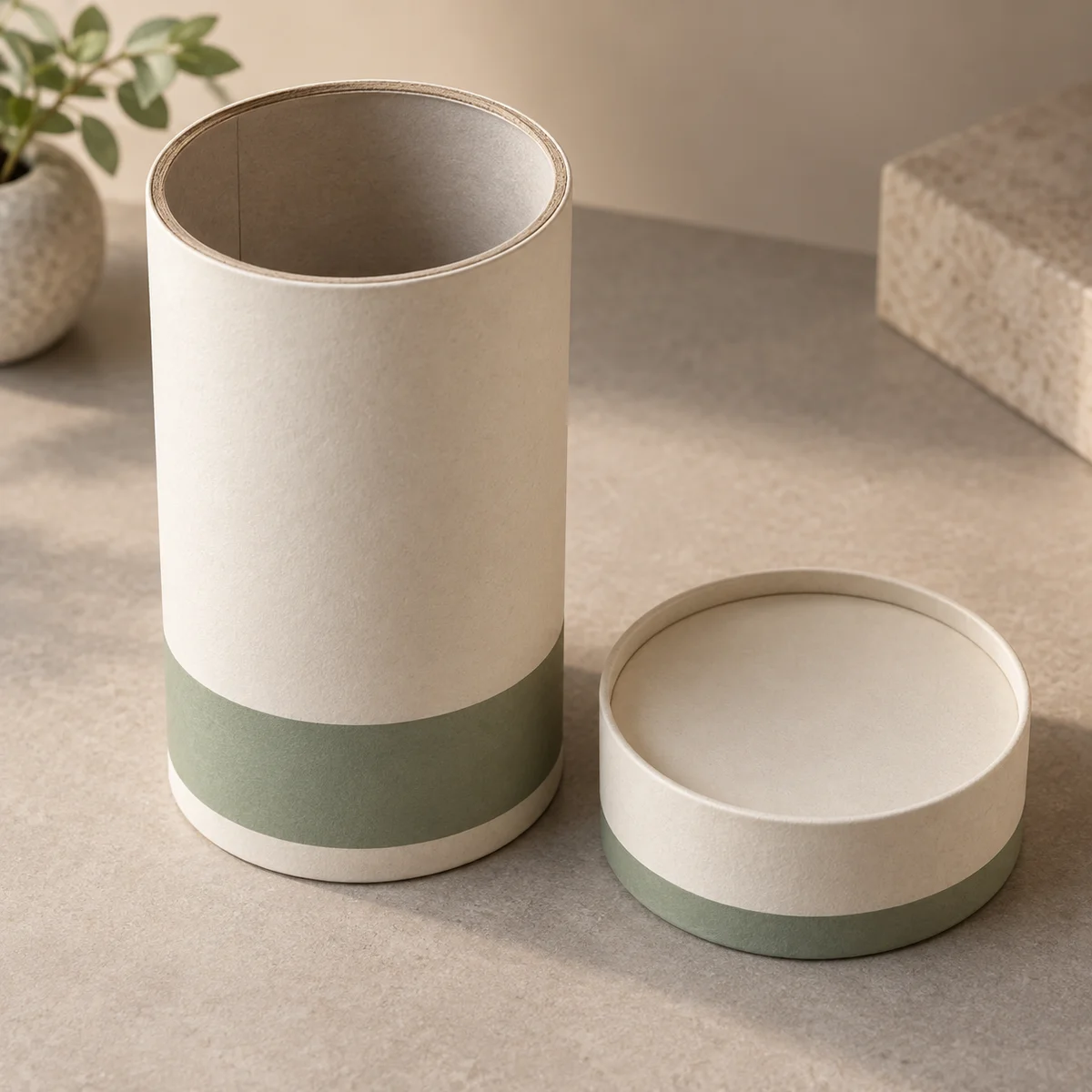

Concept B: open paperboard tube and separate shallow lid resting on a surface — Concept B — separate open-tube option; this lid and decoration differ from Concept A. Original MUGE PACKAGING concept illustrations. Each image shows a different concept option; lid depth, proportions and decoration differ. These are not consecutive views of one physical sample, customer work, factory photographs or tested fit. Final dimensions, construction and performance require project review and sampling.

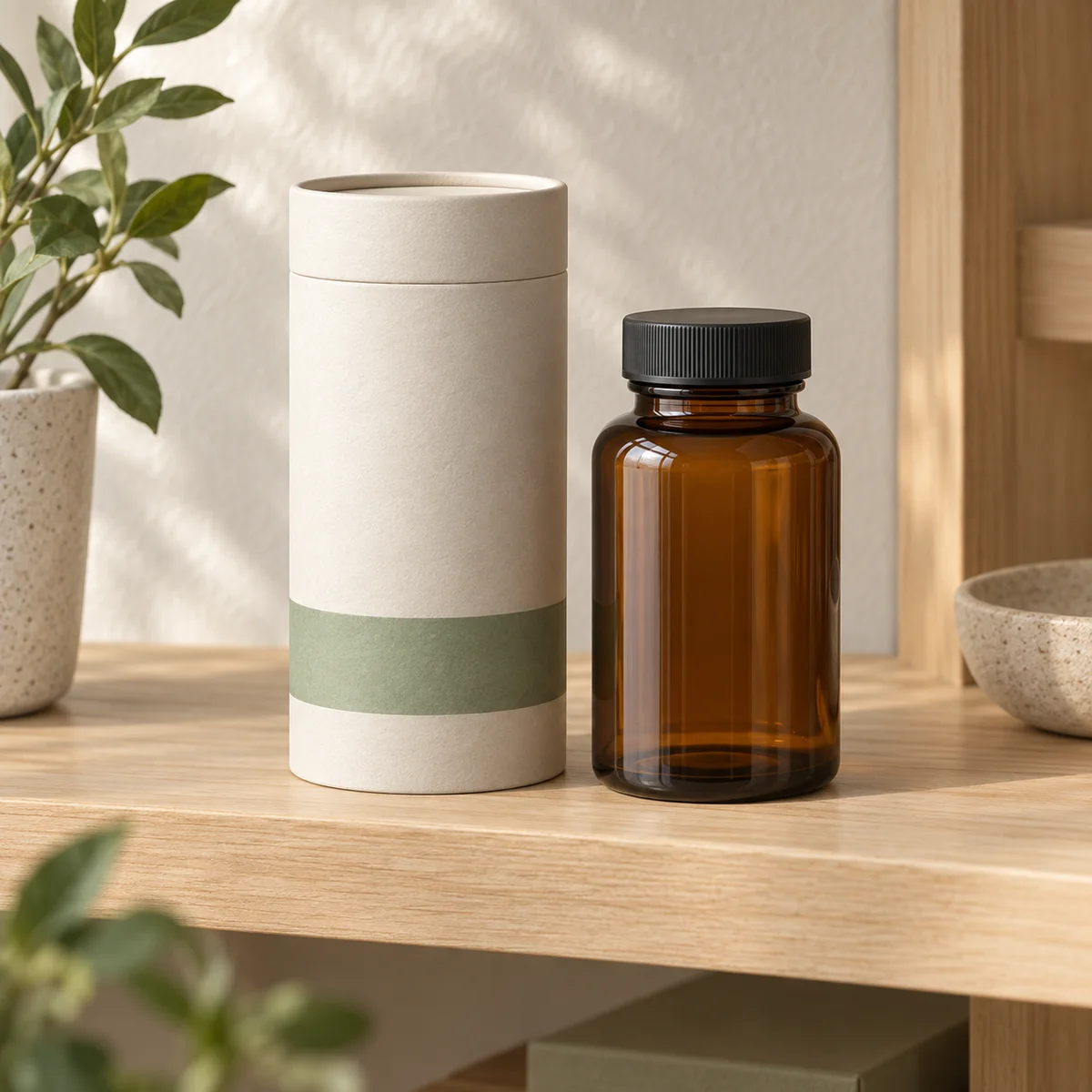

Concept C: paperboard secondary packaging tube beside one unbranded capped amber bottle — Concept C — bottle presentation option; pictured proximity does not establish internal fit. Original MUGE PACKAGING concept illustrations. Each image shows a different concept option; lid depth, proportions and decoration differ. These are not consecutive views of one physical sample, customer work, factory photographs or tested fit. Final dimensions, construction and performance require project review and sampling.

Structure and material review

Discuss a paperboard tube body, separate lid and outer paper wrap. Specify the bottle’s maximum outside envelope before asking for proposed usable internal dimensions. Wall direction, lid overlap and base construction remain project decisions; no wall thickness or clearance is established by these illustrations.

For the wrap, provide color and texture references. CMYK or spot-color printing, matte or gloss lamination, foil and embossing can be discussed against the intended artwork and paper. Availability and compatibility require review of the proposed combination. Decorative treatments are not barrier or durability evidence.

Liner, label and packing decisions

State whether the bottle needs a liner or a locating insert and identify the purpose: surface separation, position or presentation. These concepts do not show a validated insert. Request a proposal and review bottle loading and removal with an actual sample.

Provide the target market and buyer-approved label file. Reserve the intended body, lid and variable-print zones on a proposed drawing. Required wording, food-contact questions and market-specific obligations must be confirmed for the project. Identify the outer shipping pack separately from this retail tube.

Supplement tube RFQ checklist

Maximum bottle diameter including label and cap
Overall capped bottle height and packed weight
Target market and buyer-approved label artwork
Quantity by SKU and artwork version
Required lid style, paper wrap, printing and finish
Liner or insert needs and bottle removal direction
Shipping pack, sample questions and approval criteria

Approve the question each sample answers

Link each sample to a bottle SKU and artwork revision. Check usable space, closure, label visibility and removal separately. Record any change in the capped bottle, wrap or insert before approving a repeat sample. Protection performance requires an agreed verification plan for the actual packing arrangement.

MUGE’s first-party paper tube category and physical references support the tube, cap and wrap discussion only. They do not verify this supplement project or its compliance.

Read the supplement paper tube RFQ guide for the measurement and label workflow, or send your capped-bottle dimensions and artwork requirements.
