Clear PET Lock-Bottom Display Box RFQ Guide

A useful clear display-box RFQ defines the product being packed, how it will face on display, which panels need artwork and what the sample must answer. “Clear PET box” alone does not specify a final structure or performance level.

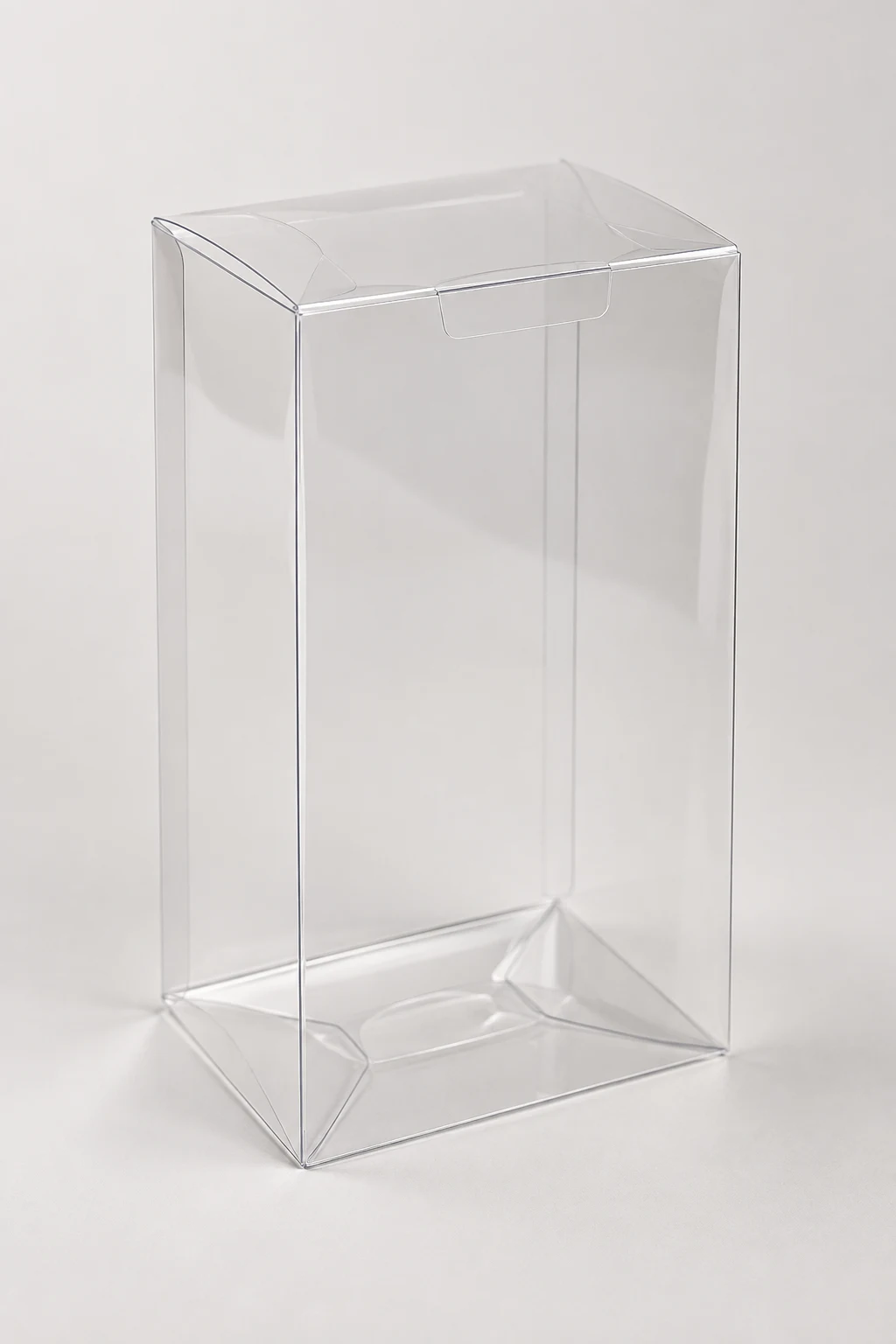

MUGE design-direction concept of an empty clear PET lock-bottom display box with visible fold lines — AI-generated MUGE PACKAGING design-direction concepts, not a customer project, factory photograph, production sample or test evidence. These are alternative concepts with different base geometry, not consecutive views of the same sample. Hidden support, final material, thickness, dimensions, lock-bottom geometry and product fit require project review and sampling.

Start with the finished product envelope

Record the largest length, width and height, product weight and any features that affect loading. State whether the pack must stand upright, hang, stack or simply present a front panel. Ask for proposed usable internal space instead of assuming a universal clearance.

Describe the fold and closure decision

Identify the intended top closure and the lock-bottom direction to review. Request a proposed layout that makes fold lines, glue areas and visible panels clear. A concept image can help explain a question, but it is not a measured dieline or proof of assembly.

Keep material and documentation questions open

Record the proposed clear material and destination market rather than treating transparency as a material specification. PET, PVC and PP options need project-specific review against the display goal, fold behavior and print coverage. Confirm the final material and any required documentation only after the product, market and proposed construction are reviewed.

Separate display review from packing performance

State the outer-carton packing route and the shipment question separately. Do not treat a lock-bottom illustration as evidence of load capacity, transit protection or retail suitability. Agree what a sample should show before a production decision.

Make the sample decision specific

Separate three questions in the sample request: can the packing operator engage the proposed bottom without forcing the folds; can the product be loaded and removed without the requested insert obstructing it; and do the clear panels leave the required label readable? Record observed results against your own acceptance criteria. If carrying weight or shipping protection matters, agree a separate test method and requirement before selecting the construction.

Send one RFQ brief

Finished product length, width, height and packed weight
Requested clear-material direction and any destination market document requirements
Display orientation, closure direction, artwork coverage and visible-panel priorities
Quantity by SKU, outer-carton packing needs and the sample question to resolve

Use the custom clear PET lock-bottom display-box page to review the format, compare broader clear packaging options, and send your project inputs for a sample discussion.

Prepared by MUGE PACKAGING. Andy — Chief Designer & Project Manager is the project contact for structure and sampling discussion; no individual article review is claimed.

Source and scope: MUGE’s first-party clear-packaging category supports the general packaging direction discussed here. This guide is a procurement checklist, not a material-compliance, load, transport or retail-performance assessment. The illustrations are separate concepts, not a customer project; final dimensions and fit require sampling.
